Engineered Solutions for Modern Manufacturing
Engineering, design, and fabrication of custom weld, assembly, and test fixtures, plus off-the-shelf positioning equipment.
Not Every Job Fits A Catalog.
We custom build solutions to fit your needs. All design & fabrication is managed in house by a team with decades of experience.

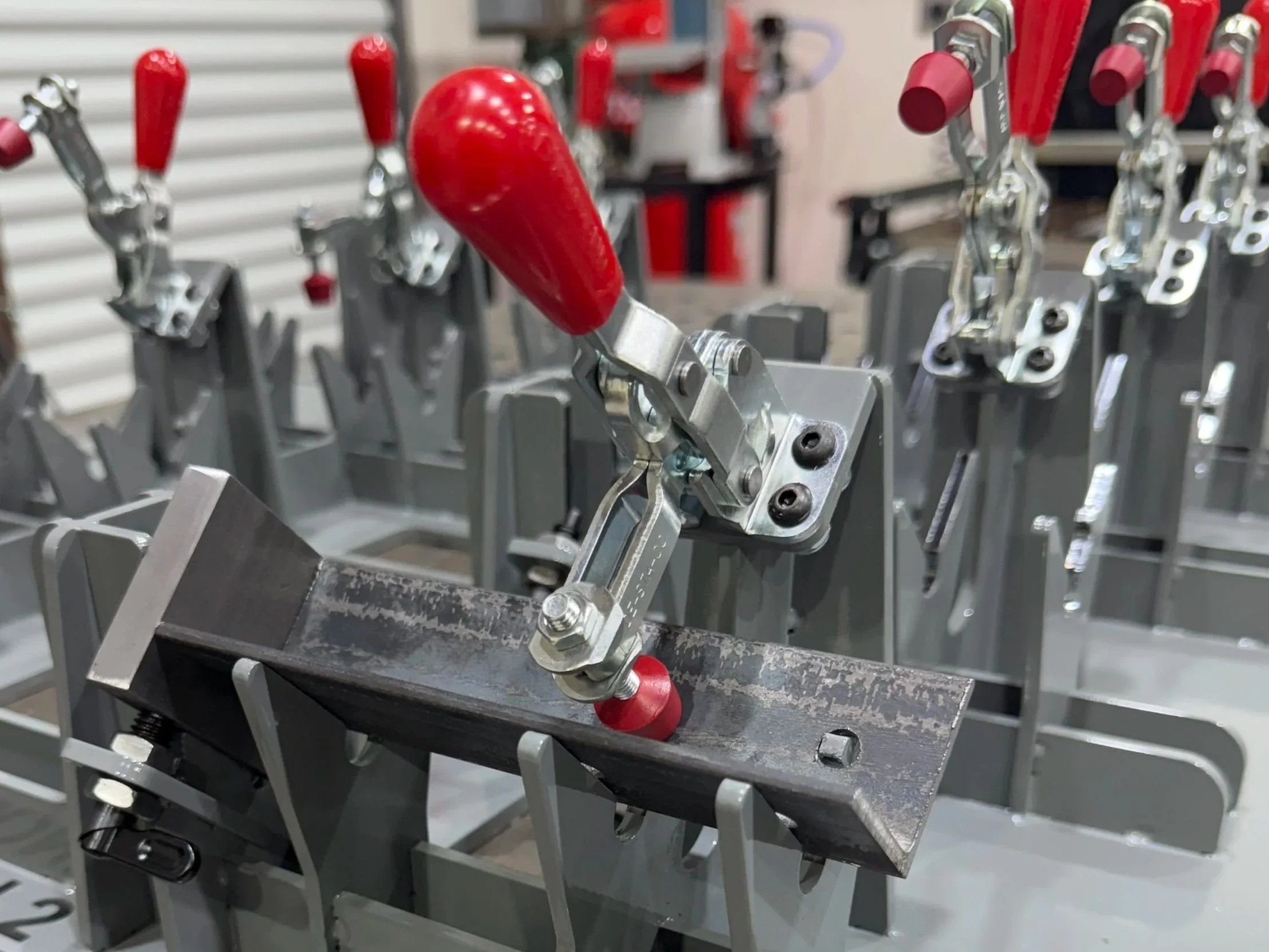

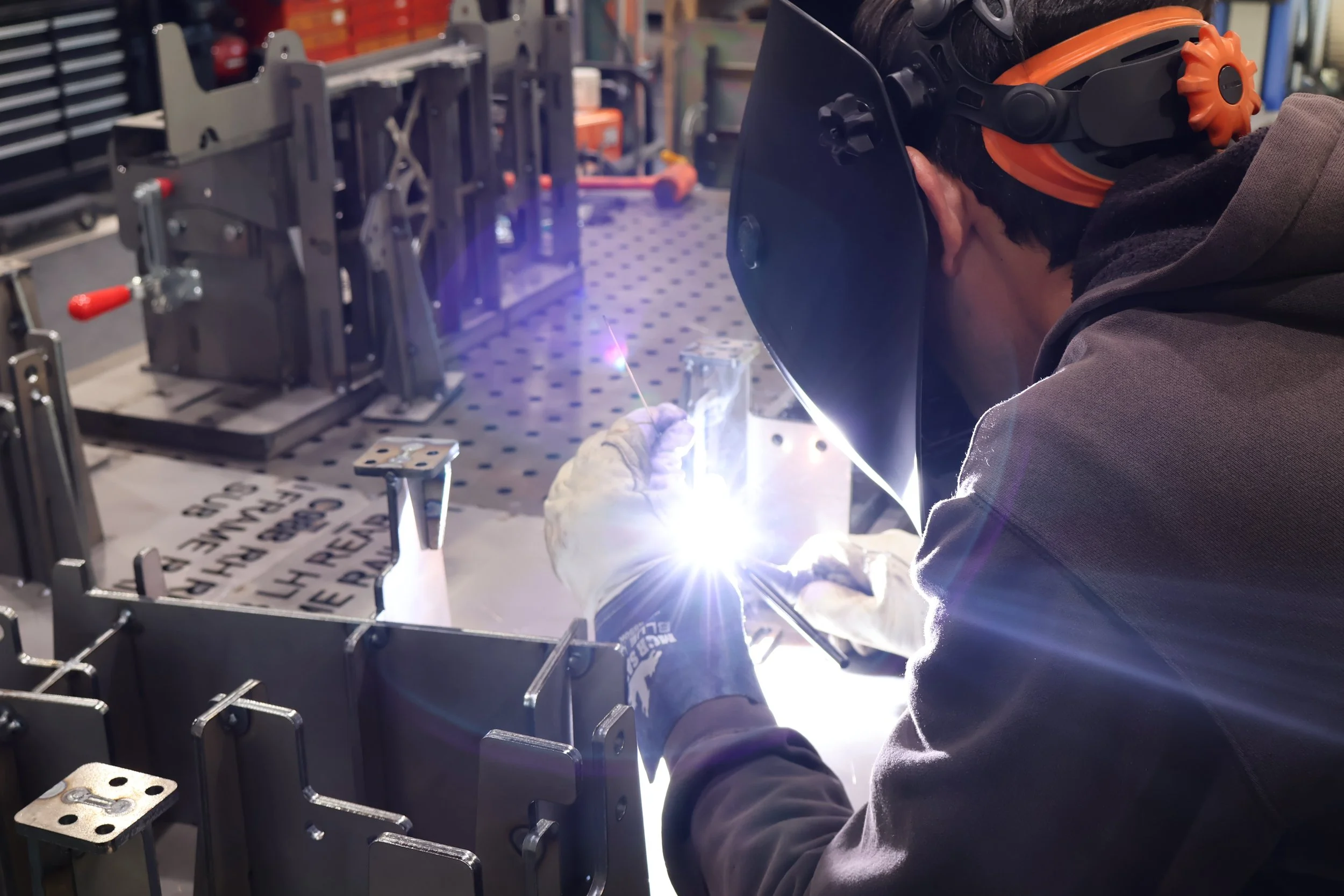

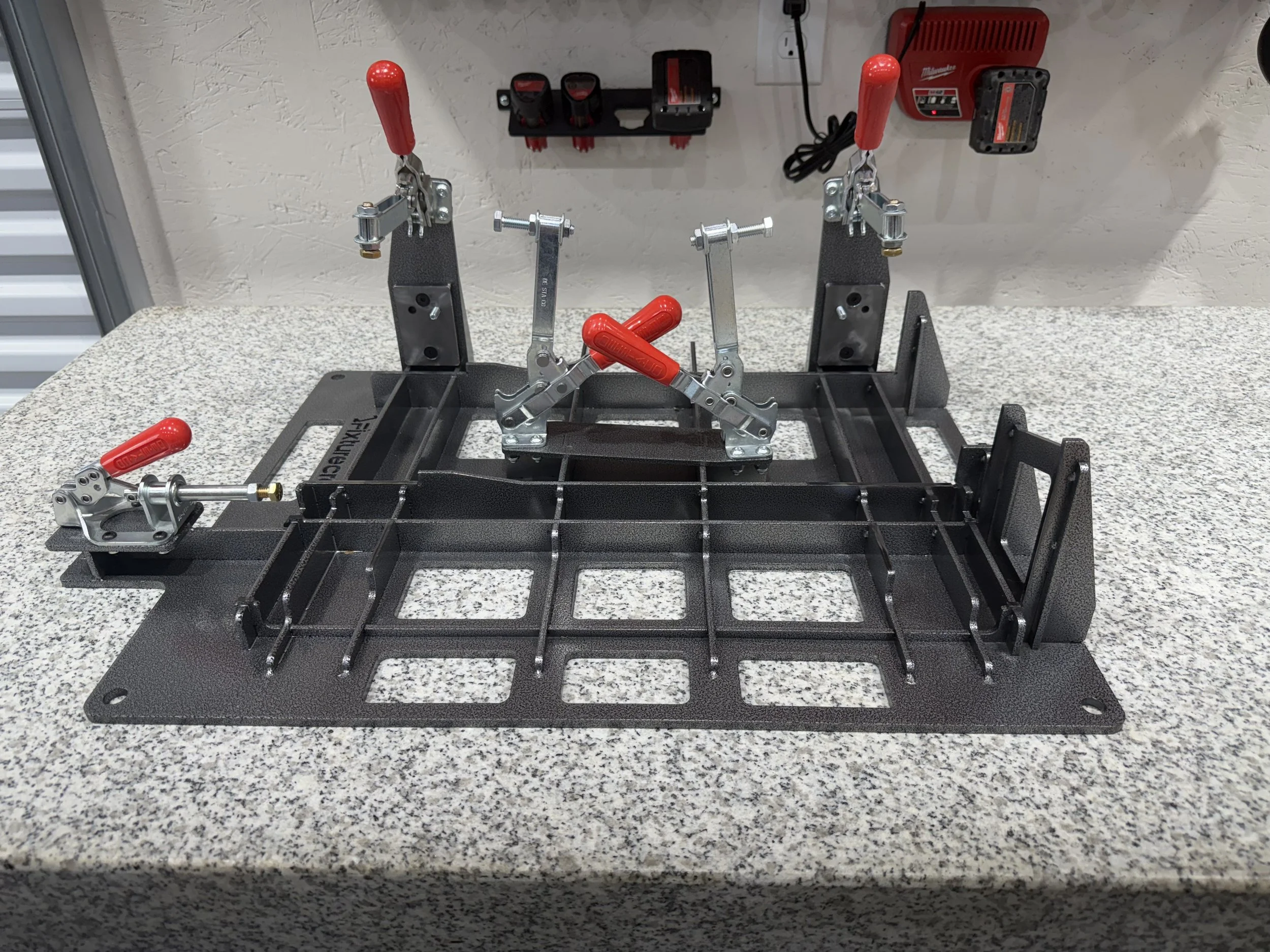

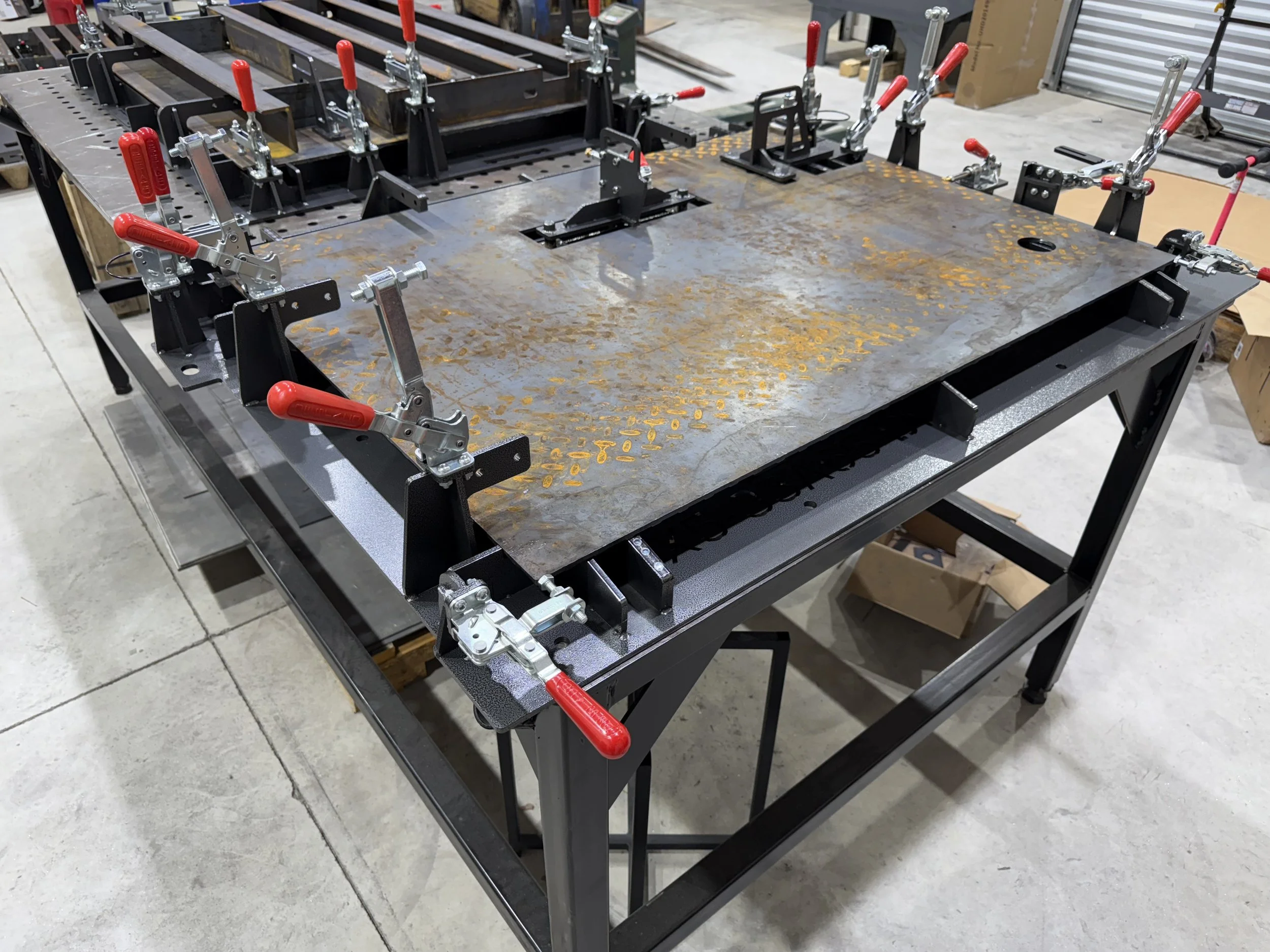

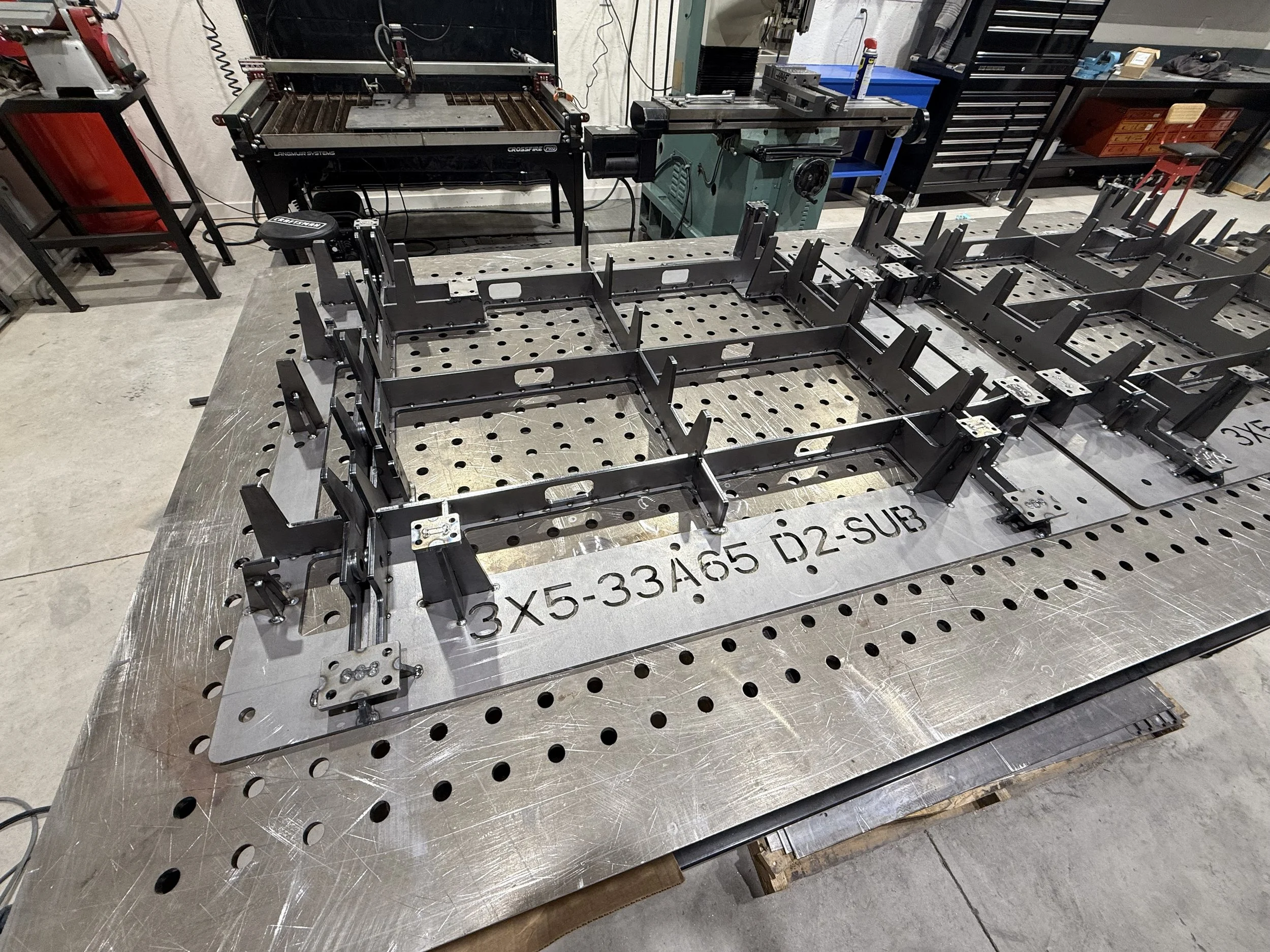

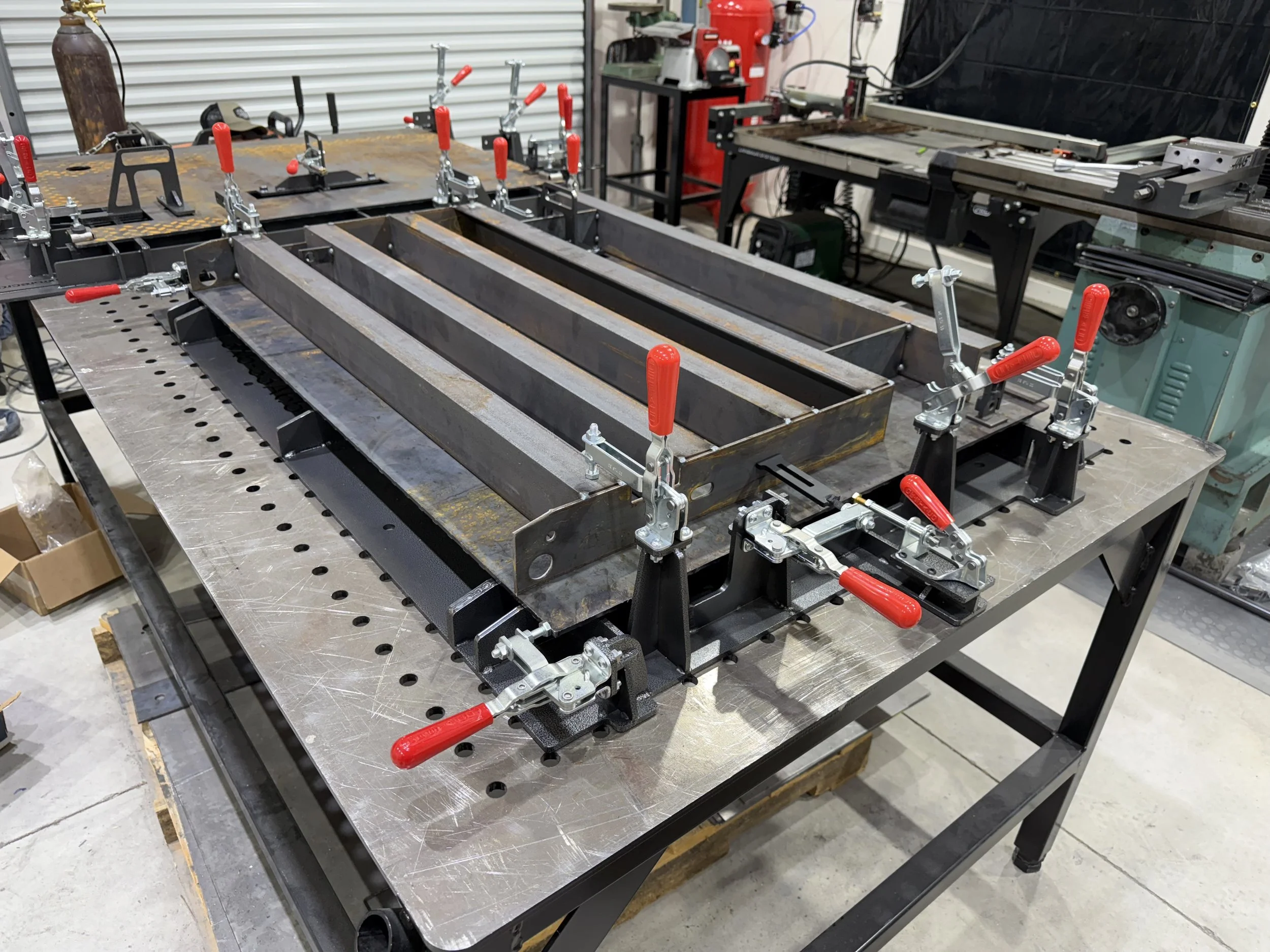

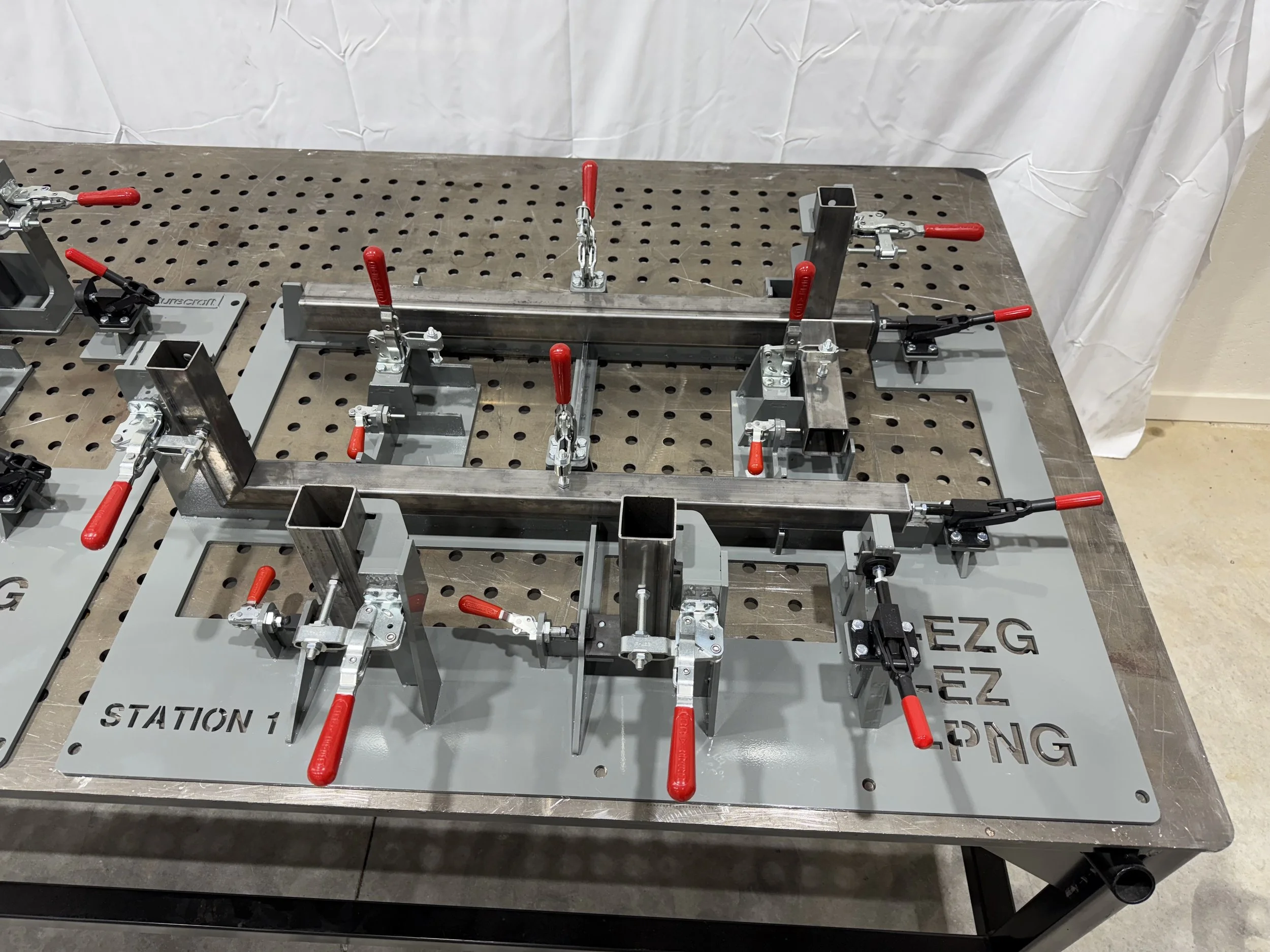

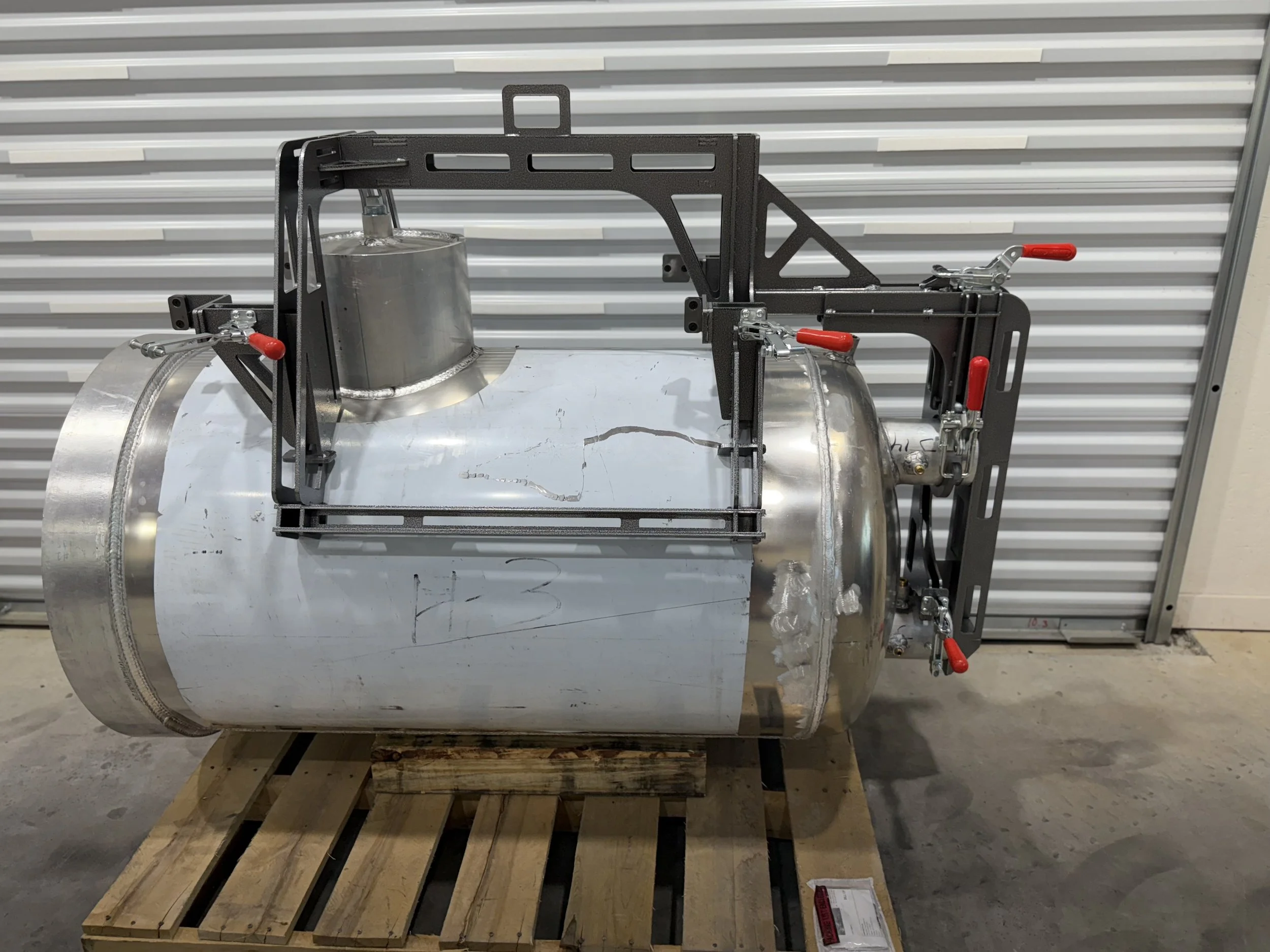

Robotic & Manual Weld Fixtures
Robotic and manual weld fixtures are our core focus. Each design is made to hold up under continuous production needs.

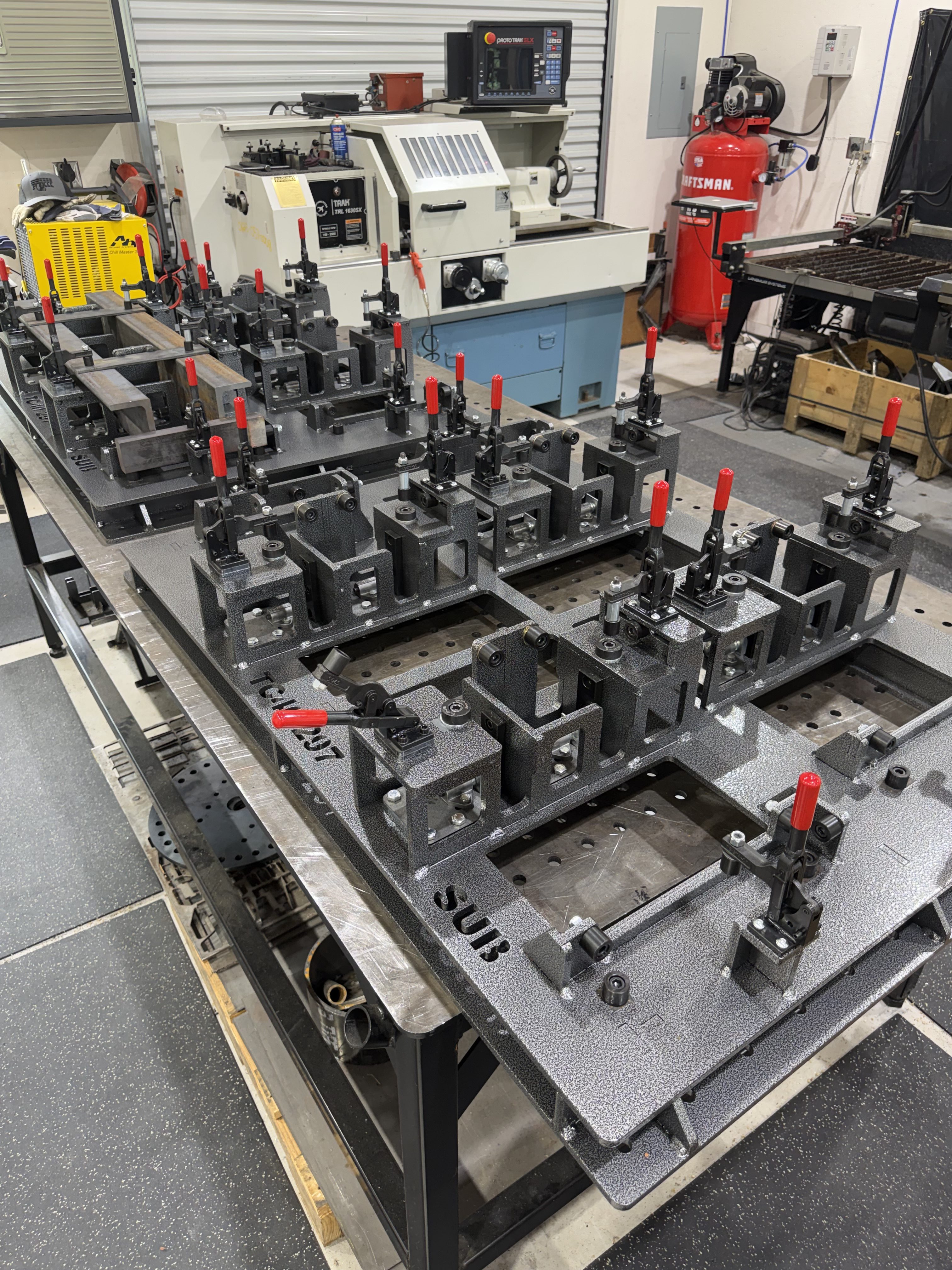

Assembly Fixtures
Tailored to your production workflow, from single-station setups to full assembly line tooling.

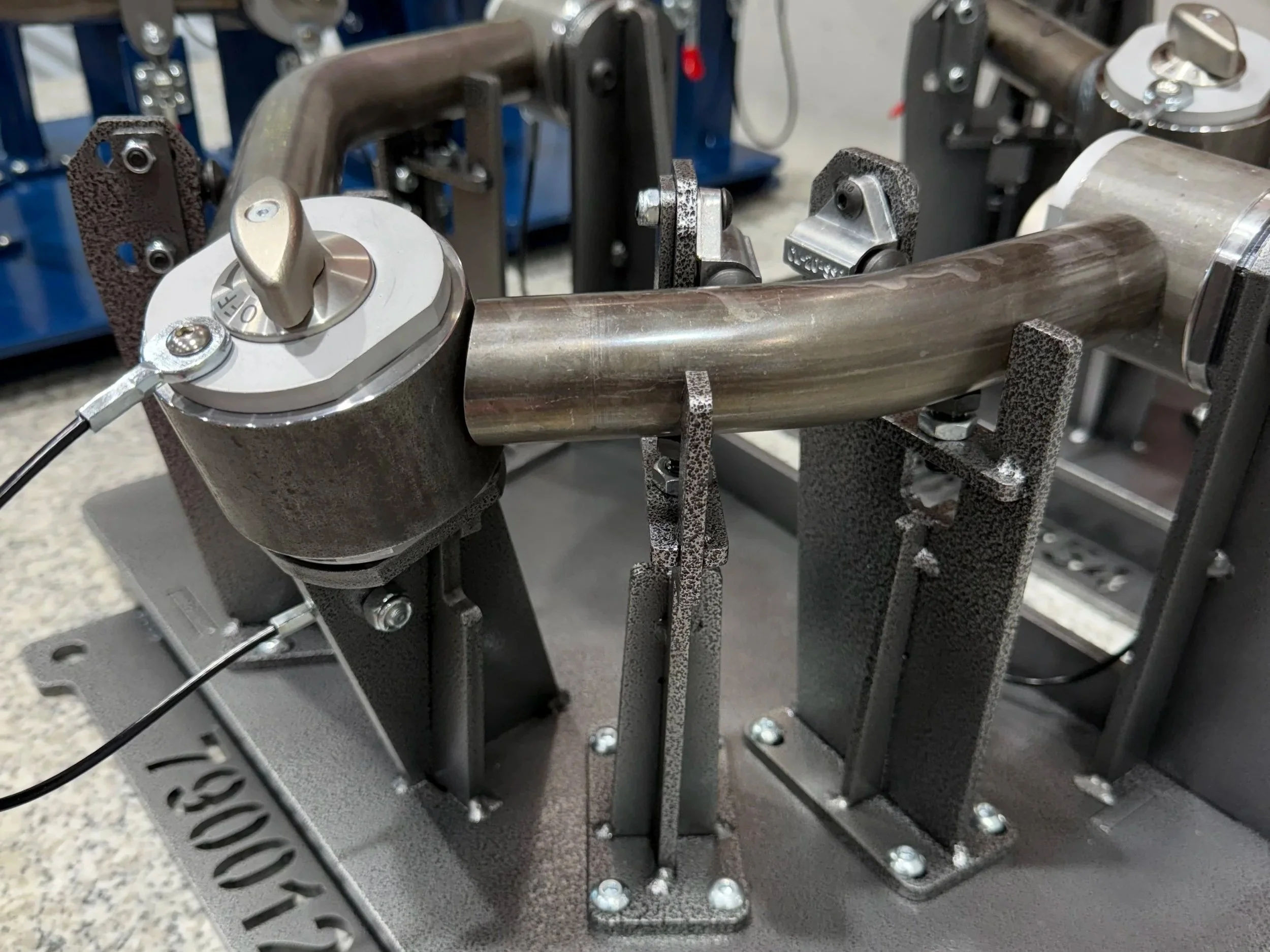

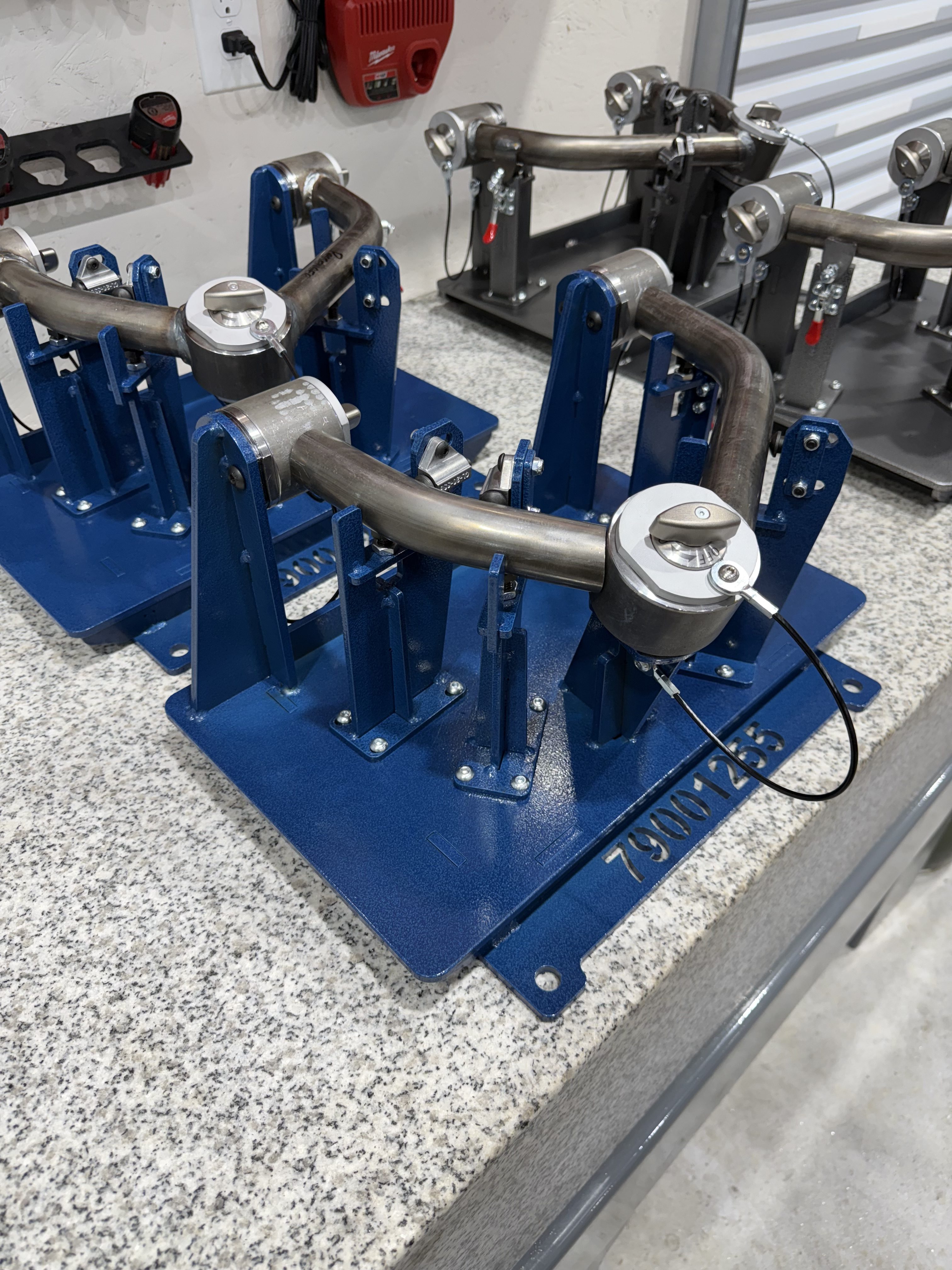

Test Fixtures
Built from agricultural, powersports, and automotive testing experience: fixtures that hold parts accurately through repeated test cycles.

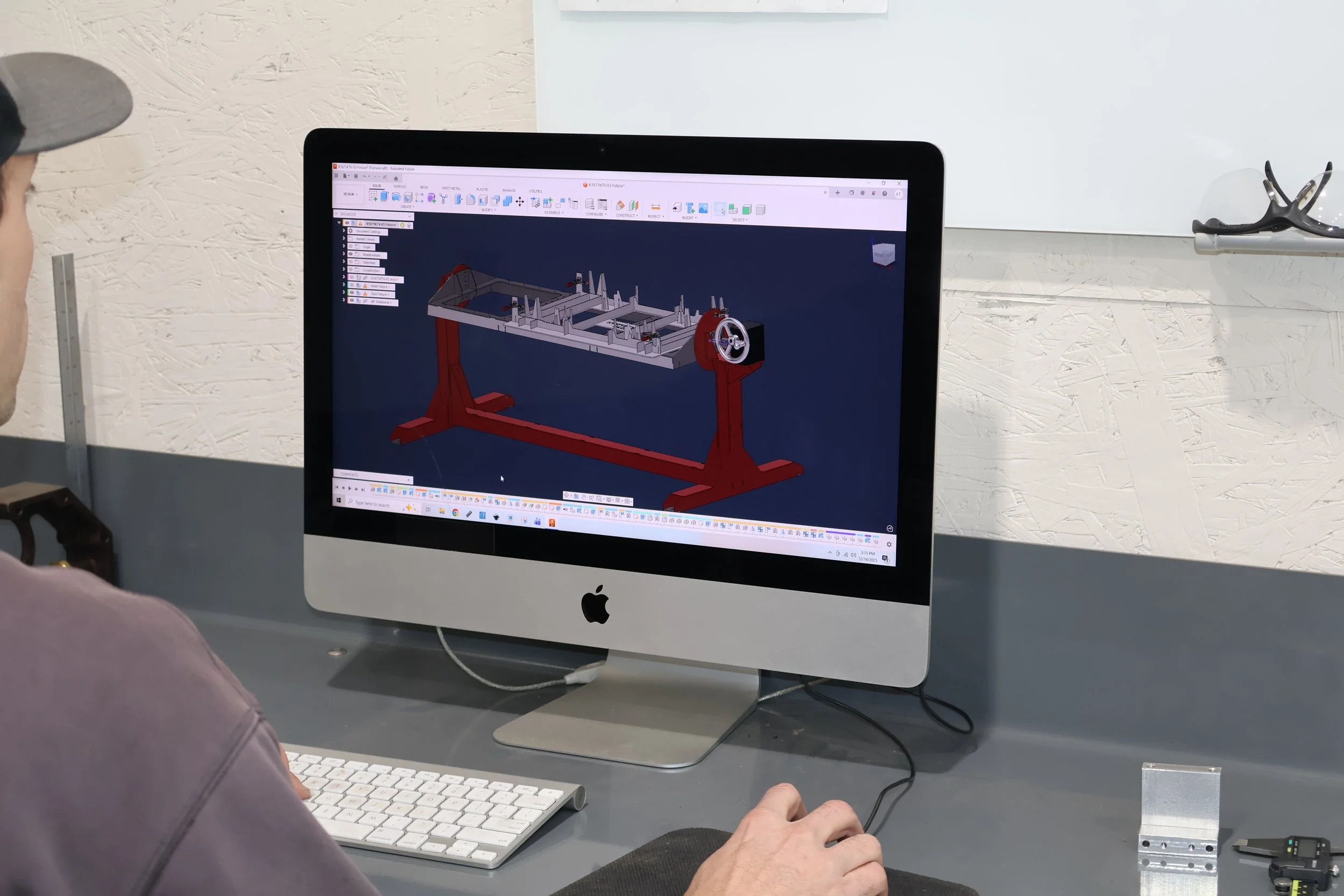

Engineering Consultation & CAD
From first sketch to finished design, our in-house engineering team works the problem with you before a single part is cut.
Custom Machining
In-house CNC mill and lathe services for the precision components your fixture or fabrication needs.
Reverse Engineering & 3D Scanning
For legacy parts with no drawing on file, we scan and reverse engineer the geometry so it can be reproduced or fixtured.
Concept To Completion, Under One Roof
With over 20 years of manufacturing industry experience, Fixturecraft handles engineering consultation, 3D design, and fabrication directly, so your project moves from a conversation to a working fixture without changing hands.
Products Built To Improve Your Workflows.
Cobot Pipe Positioner
- Expand the capability of your cobot.
- Pairs a self-centering chuck with servo-driven positioning
- Communicates directly with off-the-shelf cobots for programmable, repeatable indexing.
- Standard 120V power, cobot-ready out of the box.
Turn Any Pipe
1″ To 16″+, Schedule 10 Through 160
1″ To 16″+, Schedule 10 Through 160
Every cell below is supported at up to 1,500 lb. Darker cells use more of the total rating, and the two darkest cells show the max length that stays within capacity at that pipe size.
| 1″ | 2″ | 4″ | 6″ | 8″ | 10″ | 12″ | 14″ | 16″ | |
|---|---|---|---|---|---|---|---|---|---|
| SCH 10 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| SCH 40 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| SCH 80 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| SCH 160 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 7.9 FT | 6.1 FT |
Engineered To Turn Any Pipe
- Self-centering chuck: accommodates 1″ up to 16″+ pipe and flange diameters
- Servo drive & controller: precision motion control, controlled directly from your cobot
- Programmable indexing: communicates with off-the-shelf cobots for preset, repeatable movement
- Adjustable pipe support: V-groove wheels, threaded support rod, and a pin-off wheel support system
- Standard power input: runs on 120V power, configurable to 240V single and 3-phase
By The Numbers
Specifications
Specifications
| Load Capacity | 1,500 lb |
| Pipe Range | 1″ to 16″+ diameter |
| Length Capacity | 16″+ diameter, 72″+ length |
| Precision | <8 arc-minute backlash |
| Pipe Schedule | SCH 10 through SCH 160 |
| Power Input | Standard 120V; configurable to 240V single & 3-phase |
| Status | Available Now |
More Servo Positioners On The Way
Three more cobot-ready positioners join the lineup next year, all built on the same servo-driven platform.
Rotary Carousel Table
48″ diameter, 2,000 lb load capacity.
Headstock Tailstock Table
5′ and 8′ table length options, 2,000 lb load capacity.
Linear Rail Positioner
Servo-driven rail mount that extends cobot range. Exact spec TBD.
Modular Welding Workstation
- 4′ x 4′, 4′ x 8′, and 5′ x 10′ table sizes available
- Divider panels split one table into multiple independent workstations.
- Need something outside that range?
- Custom tables are available, built to support part sizes from small assemblies up to 30,000+ lb.
Everything The Weld Needs, In One Place
- Fabricated mounting plate: bolt a cobot directly to the table
- Integrated wire feeder bracket
- Tablet holder for pendant & HMI control
- Push handle for easy repositioning
- Leg supports rated for continuous duty
- Mobility system: casters with integrated leveling feet (±1″ leveling range)
By The Numbers
Specifications
Specifications
| Table Size | 48″ x 48″ |
| Overall Height | 36″ |
| Table Weight | 660 lb |
| Shipping Weight | 700 lb |
| Max Static Load Capacity | 2,000 lb |
| Tabletop Material | A36 steel, 3/8″ thick |
| Tabletop Finish | Black oxide |
| Hole Pattern | 2″ x 2″ grid, 16mm holes |
| Flatness Tolerance | ±0.020″ over 4 sq ft |
| Frame Construction | 3/16″ laser-cut & bent steel, satin black powder coat |
What Ships In The Crate
A Complete Kit: Not A Pile Of Steel
A Complete Kit: Not A Pile Of Steel
- Outer frame (Qty 2): structural backbone
- Cross-members (Qty 5): ties the frame together
- Top supports (Qty 3): flat, rigid work surface
- Leg supports (Qty 4): continuous-duty stability
- Cobot mounting plate: machined to spec
- Wire feeder bracket: feeder-side hardware, close at hand

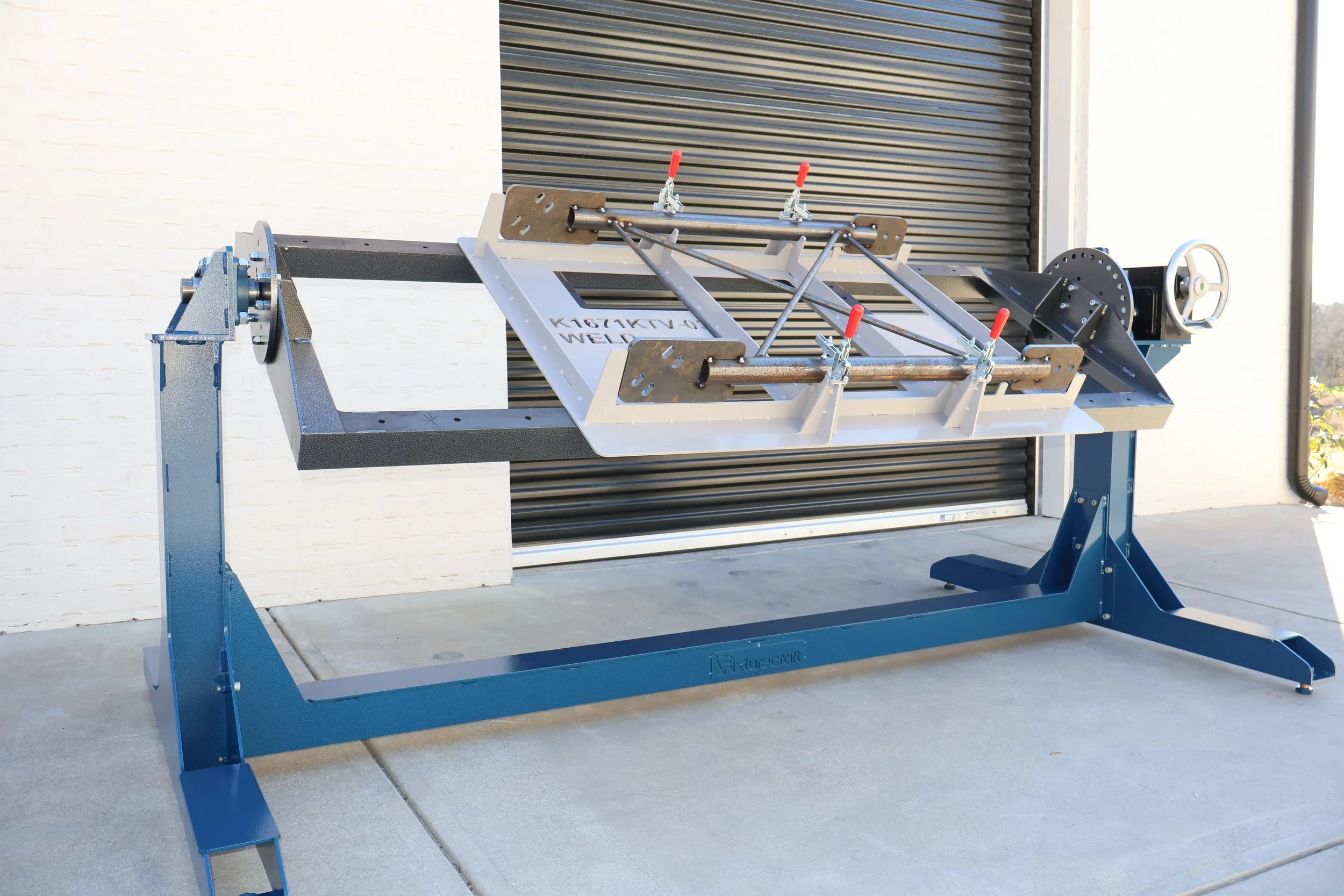

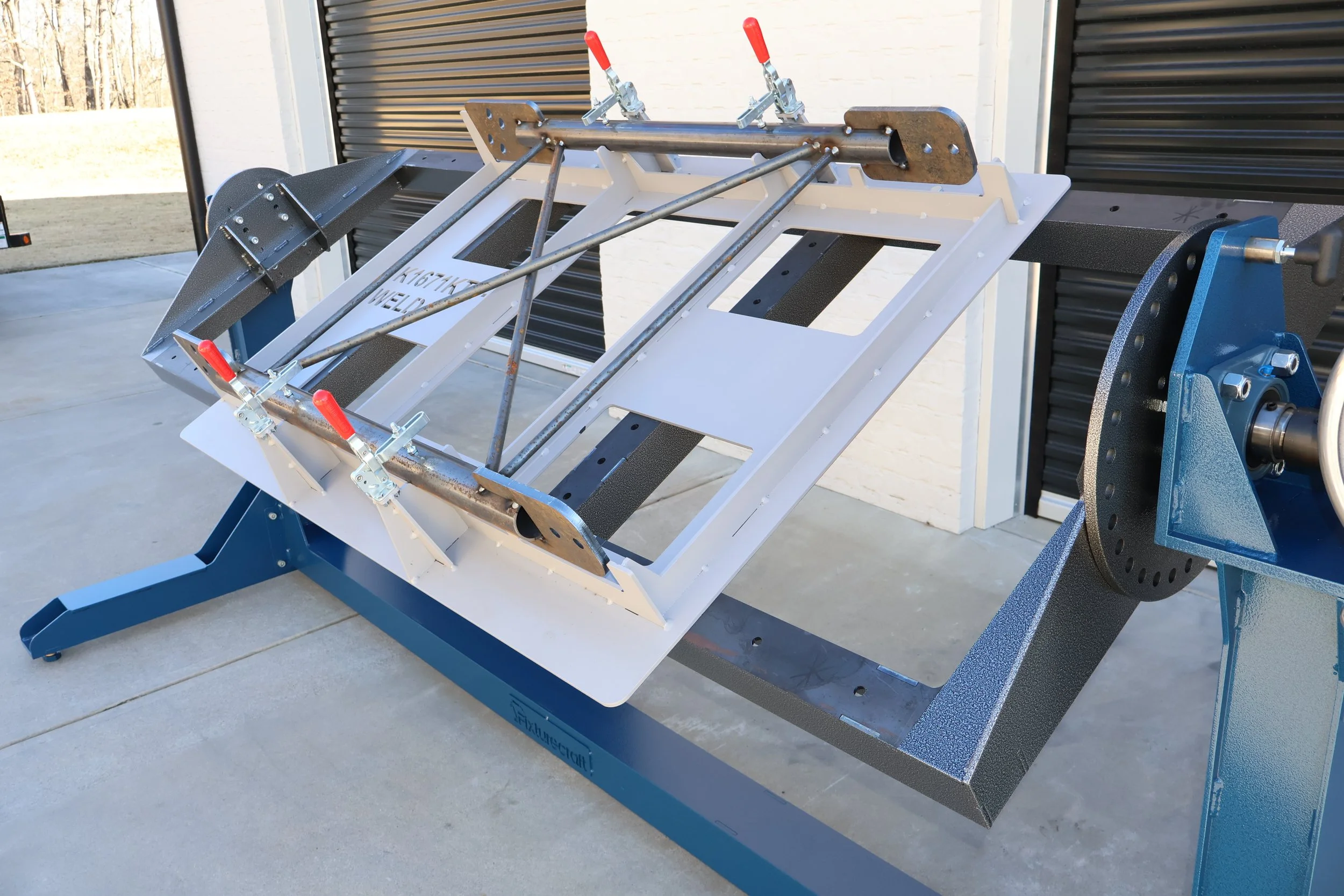

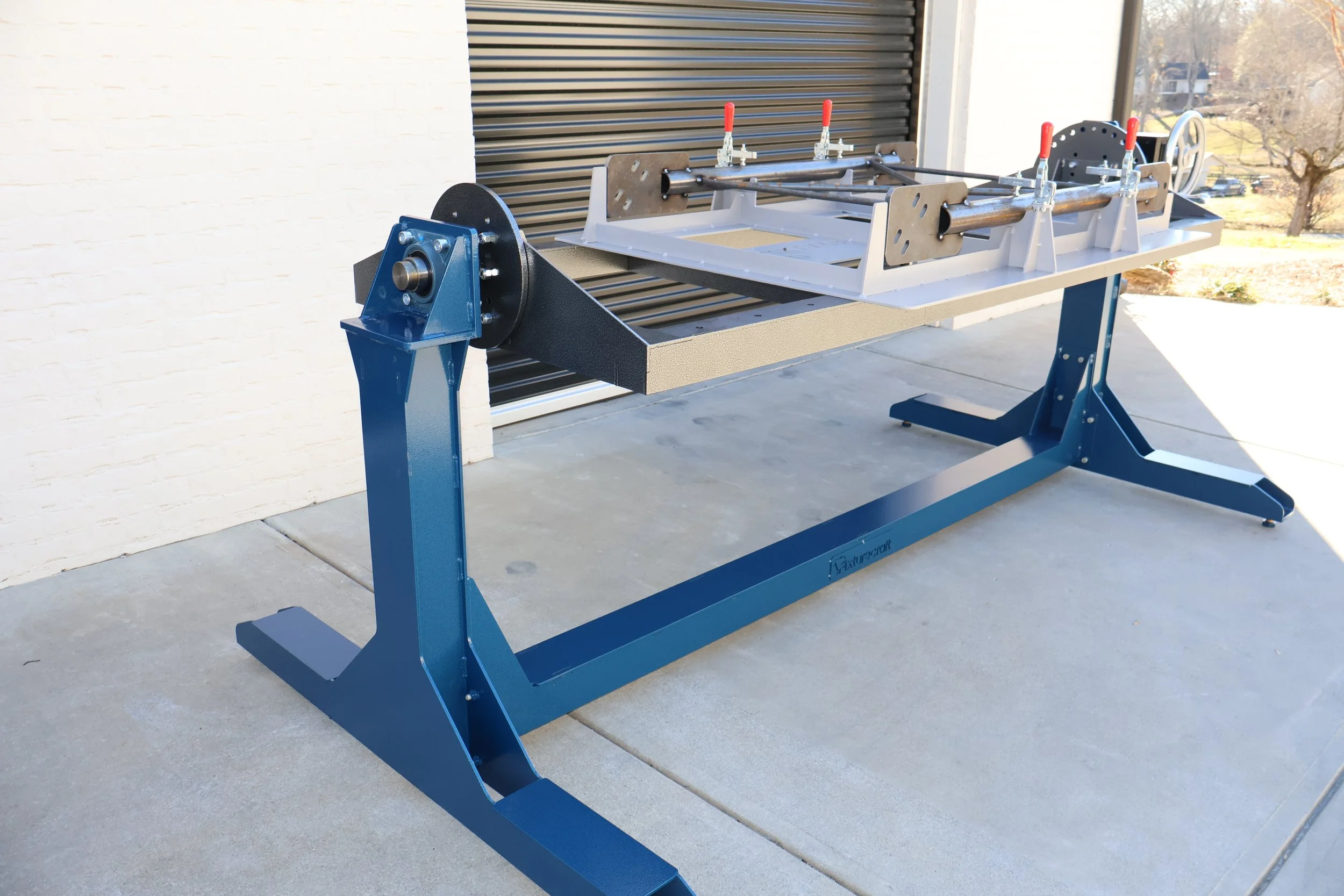

Manual Headstock Tailstock Positioner
- Heavy-duty, worm-drive rotating weld table built for full 360° control
- Modular frame
- Adapts from bare fixture-ready cross members to precision fabricated weld top.
Why It Works
Engineered To Hold Its Line
Engineered To Hold Its Line
- Heavy-duty welded steel frame, adjustable feet or casters
- Worm-drive gearbox for full 360° rotation
- Indexing plate for repeatable positioning
- Removable, configurable cross members
- Black oxide coated, precision laser-cut weld top
- Custom fixturing and standard clamps, all-in-one
- Dual-sided for fixture storage or multi-surface use
- 48″, 72″, and 96″ length options
One Frame. Three Ways To Run It.
Every Manual Headstock Tailstock Positioner ships on the same heavy-duty rotating base: configure the top to match the job on your floor.
Custom Fixture Ready
Bare cross members ready for your own fixturing: the most flexible starting point for a dedicated build.
Full Fabricated Weld Top
A complete black oxide coated, precision laser-cut weld top for shops that need a flat, tooling-ready surface out of the box.
Fixture + Weld Top Combo
Custom fixturing and a fabricated weld top on the same table: the best of both, built to spec.

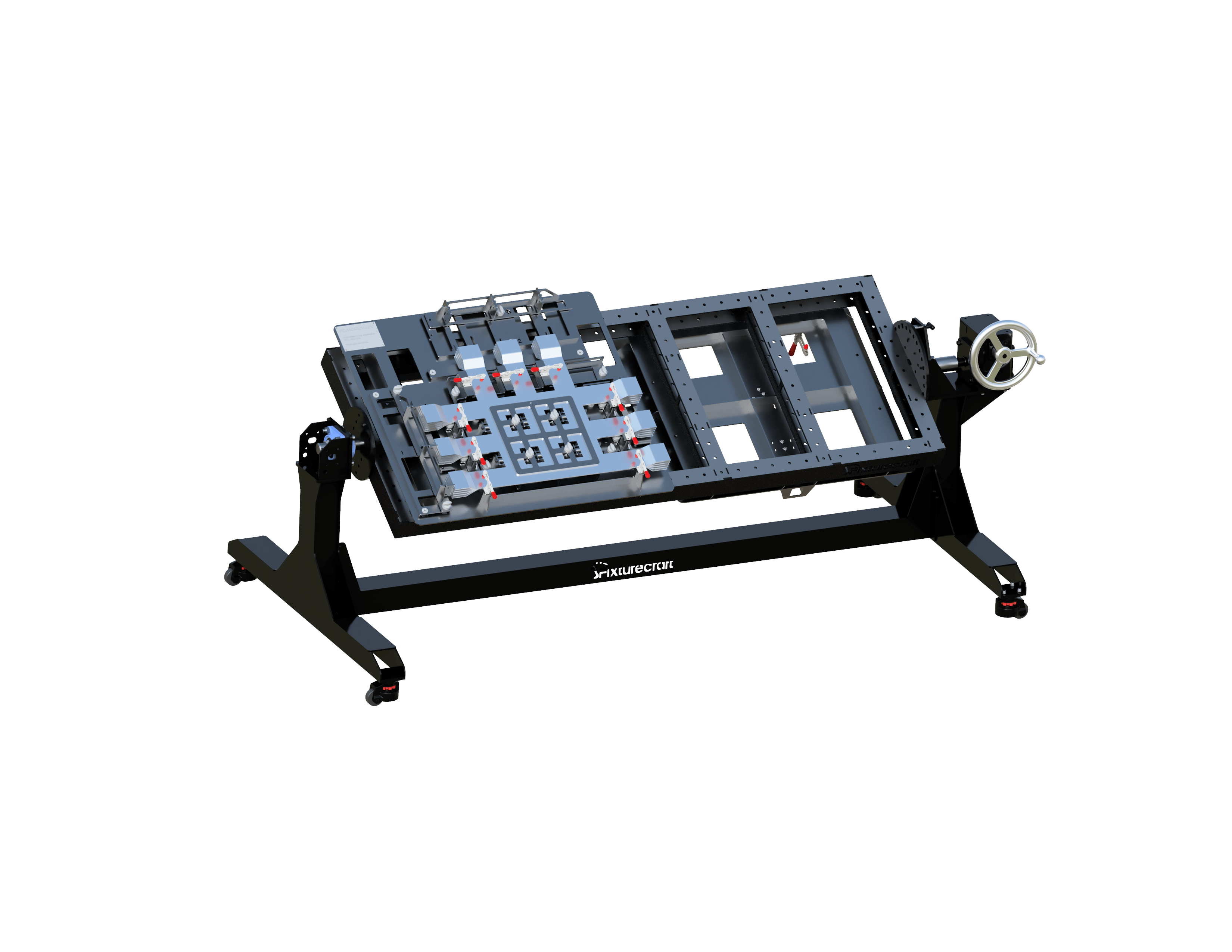

Full Rotation, On Demand
Watch the Manual Headstock Tailstock Positioner rotate a full 360° on its worm-drive gearbox, built for shops that need the work to come to the welder, not the other way around.
- 48″, 72″, and 96″ length options
- Adjustable feet or casters
- Available now by direct quote
Precision Workholding, Built By People Who’ve Run The Floor
Fixturecraft started by solving a familiar problem: the industry needed part positioning solutions that fit their exact process. Manufacturers wanted something they could get their hands on quickly, intuitive to run, compatible with their existing setup.
We spent two decades inside the industry learning what makes successful manufacturing companies work, then started Fixturecraft to bring that expertise to the rest of the industry.
Through custom tooling and off-the-shelf workstations and positioners, we improve our customers’ processes one project at a time.
Straight Answers, No Sales Pitch.
What’s the difference between the Manual Headstock Tailstock Positioner and a custom fixture?
What’s the difference between the Manual Headstock Tailstock Positioner and a custom fixture?
The Manual Headstock Tailstock Positioner is a standard, ready-to-order rotating weld table: no design lead time required. A custom fixture is engineered from scratch to hold one specific part or process. Many shops use both together: a Manual Headstock Tailstock Positioner as the rotating base, with custom fixturing or clamps mounted to its removable cross members.
Do you build cobot-compatible welding tables?
Do you build cobot-compatible welding tables?
Yes. The Modular Welding Workstation includes a fabricated mounting plate built specifically for collaborative robots: a cobot bolts directly to the table, with an integrated wire feeder bracket and tablet holder for pendant and HMI control close at hand.
What lead time should I expect for a custom quote?
What lead time should I expect for a custom quote?
Lead time depends on the complexity of the fixture and current shop load. Send us your prints, part number, or a description of the problem you’re solving, and we’ll follow up directly with a scoped timeline and quote.
Do you handle engineering, fabrication, and machining in-house?
Do you handle engineering, fabrication, and machining in-house?
Yes, engineering consultation, CAD design, fabrication, and in-house CNC machining all happen under one roof at our Clermont, GA shop. Your project moves from a conversation to a working fixture without handing off between separate design and build vendors.
Where are Fixturecraft products designed and made?
Where are Fixturecraft products designed and made?
Every Fixturecraft product and custom fixture is designed, engineered, and fabricated in the USA at our shop in Clermont, GA, including the Manual Headstock Tailstock Positioner and Modular Welding Workstation.
Send Us Your Prints, Your Problem, Or Your Part Number
Whether you’re ready to request a quote on a Manual Headstock Tailstock Positioner or Modular Welding Workstation, or need a fixture built from scratch, the fastest way to reach us is below.
